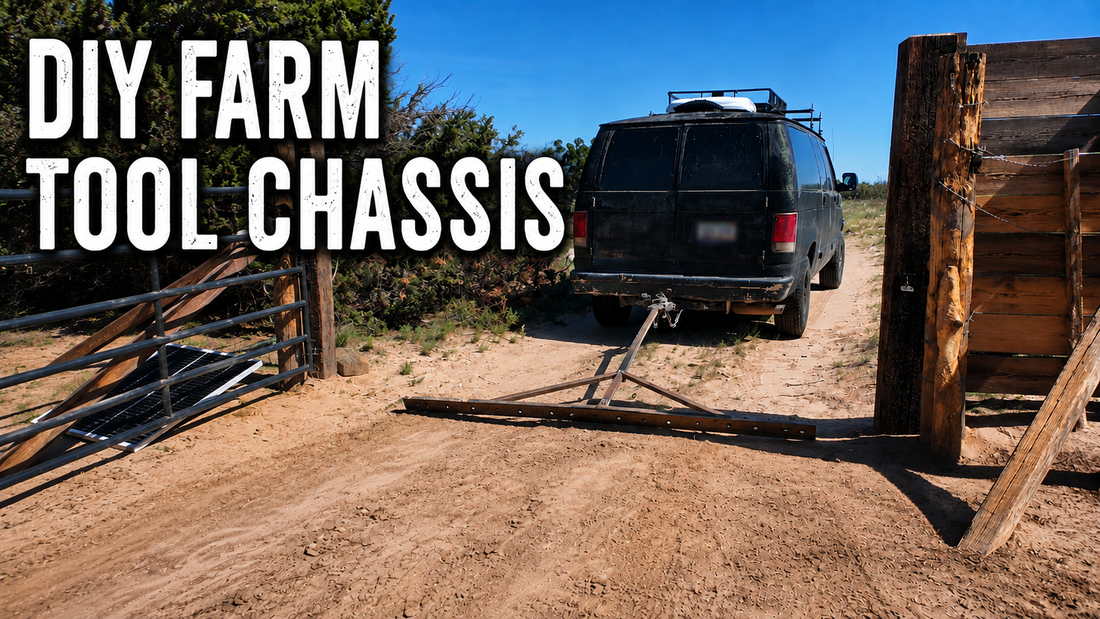

DIY Farm Tool Chassis for Grader and Farm Equipment

Most small farm tools are built as separate pieces of equipment. A grader has its own frame. A soil ripper has another frame. A drag or rake needs another hitch, another set of supports, and sometimes another axle.

That can work, but it also means using more steel, spending more money, and finding somewhere to store every separate tool.

I am taking a different approach. My goal is to build one strong, simple farm tool chassis that can eventually support several different attachments. The first attachment will be a grader blade, but the larger idea is to create a useful platform that can grow with the homestead.

Why I Am Building My Own Farm Equipment

I have several jobs around the property that would be easier with basic tractor-style equipment. I need to maintain roads, level uneven ground, move loose soil, loosen compacted areas, and eventually manage grass and hay.

I do not necessarily need a large tractor or a collection of expensive commercial attachments. What I need is equipment that matches the size of my property, the vehicles I already own, and the type of work I actually do.

That is one reason homemade equipment makes sense here. I can build it slowly, use materials I already have when possible, and improve the design after seeing how it works in real conditions.

The Basic Chassis Idea

The main idea is to build a central chassis with a hitch, a strong frame, and eventually an axle or wheel system. Different tools could then bolt onto the same chassis.

Instead of permanently welding every attachment into place, I want to create a mounting system that allows the working tool to be removed and replaced.

The chassis could stay mostly the same while the attachment changes depending on the job.

Possible attachments could include:

• A grader blade for maintaining roads and leveling soil
• A soil ripper for loosening compacted ground
• A drag for smoothing loose material
• A rake for gathering grass or debris
• Basic hay equipment
• Other tools that may become useful later

The Grader Blade Will Be the First Attachment

The first tool I plan to build around this system is a grader.

I already have a heavy steel grader blade. The blade is large enough to do useful work, but it needs a frame, a hitch, and a way to control how deeply it cuts into the ground.

The simplest first version may be a basic pull-behind frame with the blade mounted securely between the hitch and the rear of the chassis.

That would allow me to begin testing the blade without making the first version more complicated than it needs to be.

Starting With a Simple First Version

One of the easiest ways to slow down a project is to try to solve every future problem before building the first version.

For the first chassis, I am mainly concerned with a few things:

• The frame needs to be strong enough to handle the weight of the blade
• The blade needs to stay stable while being pulled
• The hitch needs to handle the pulling force safely
• The angle and depth of the blade need to be useful
• The design needs to leave room for later improvements

The first version does not have to be the final version. It only needs to work well enough to show me what needs to change.

Adding an Axle and Height Adjustment

A later version may include an axle with wheels behind the blade.

The axle could help support the weight of the chassis and make it easier to control the cutting depth. By raising or lowering the frame in relation to the axle, I may be able to adjust how aggressively the blade contacts the ground.

This would make the grader more useful for both rough cutting and lighter finishing work.

The axle could also make it easier to transport the tool across areas where I do not want the blade dragging against the ground.

A Modular Attachment System

The most important part of the long-term design may be the attachment point.

I am considering using heavy angle iron or another reinforced mounting surface across the frame. Each attachment could then bolt onto that mounting area with several large bolts.

That would allow the attachment to be removed without cutting welds or rebuilding the entire chassis.

The goal is not to create a complicated commercial quick-change system. I simply want a strong and repeatable way to change tools with ordinary hand tools.

Why a Shared Chassis Makes Sense

A shared chassis could reduce the amount of material needed for future tools.

The hitch, main frame, axle, and wheels would only need to be built once. New attachments could focus mainly on the part that actually contacts the soil or performs the work.

That could reduce:

• The cost of steel
• The number of wheels and axles needed
• The amount of welding required
• The space needed to store equipment
• The time required to build each new tool

It also gives me a consistent platform to improve over time. If the hitch or axle design needs to change, that improvement could benefit every attachment that uses the chassis.

Building Equipment Around the Homestead

I try to build systems around the actual needs of this property rather than around what is normally sold.

Commercial farm equipment is often designed for larger farms, larger tractors, and heavier workloads. That does not automatically make it the best choice for a small off-grid homestead.

A homemade tool can be slower, simpler, and less refined while still being useful.

For me, the main question is not whether the equipment looks professional. The question is whether it solves a real problem without creating unnecessary cost or complexity.

Using the Vehicles I Already Have

Another part of this project is designing equipment that can work with the vehicles already on the property.

I have an older farm truck that may eventually become the main pulling vehicle for this type of equipment. A strong front or rear hitch system could allow the truck to move and operate different homemade implements around the property.

The chassis may also be useful behind another vehicle if the hitch height and weight are kept reasonable.

That gives me more flexibility than building the system around one specialized machine.

What I Expect to Learn

I expect the first version to reveal problems that are difficult to see on paper.

The blade may need more weight. The hitch may need additional bracing. The wheel position may need to move. The attachment point may need to be stronger or easier to access.

That is normal.

This kind of project is usually a process of building, testing, adjusting, and testing again.

The value of the first version is not that it will be perfect. The value is that it will give me real information.

A Long-Term Farm Equipment Platform

The grader is only the beginning of the idea.

If the chassis works, I may eventually use it as the base for several tools. Some of those tools may be simple, while others may require more adjustment or moving parts.

Over time, the chassis could become a small homemade farm equipment platform built specifically for this homestead.

That fits the way I prefer to build. Start with one useful tool, learn from it, and allow the system to grow only when there is a real reason.

Following the Build

This video shows the early planning stage of the project. The design will likely change as I begin cutting steel, positioning the blade, and testing the chassis on the property.

I will continue documenting the build, the problems I run into, and the changes that make the tool more useful.

Once the grader is working, I will also be able to show how it performs on the roads and soil around the homestead.

The goal is not to build the most advanced grader. The goal is to build a practical tool from materials I can afford, using a design that can support other farm equipment later.
